In last part of this series I talked about virtual hard drives, drive types, drive formats and how to create a new virtual drive. In this part we will take a look on how we can edit or change certain settings for the existing virtual drives.


With this tool we can take a look at the vhd/vhdx file. It will be usful if we want to check if the disk is fixed or dynamic and how big it is.

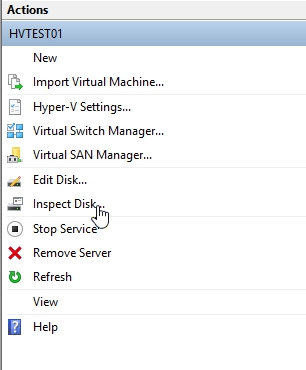

From the Action pane, click on Inspect Disk…

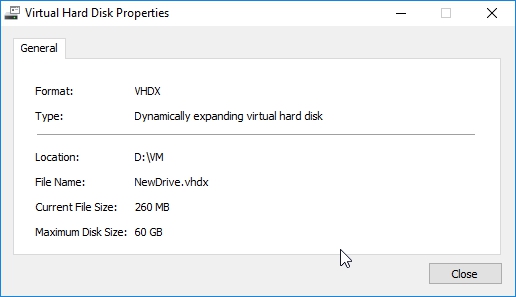

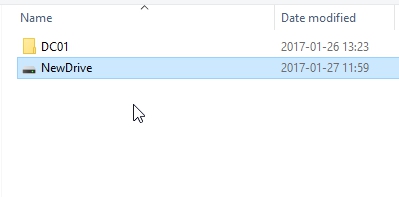

I will inspect NewDrive which I created in previous post




Let’s see how we can convert this drive from dynamic to fixed.


From the Action pane, click on Edit Disk…


Before you begin page will pop-up. Click next

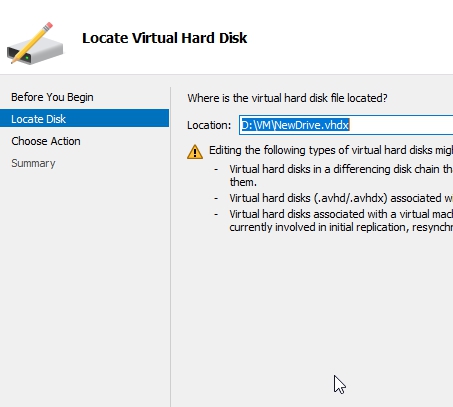

On Local Virtual Hard Disk page,  Click on browse and find the disk file which you want to edit and click next


On Choose Action page, we need to choose which operation we want to use:

COMPACT – will reclaim unused space in the virtual disk.

CONVERT – with this option we can convert our drive to either VHD or VHDX. (I will convert my VHDX drive from dynamic to fixed).

EXPAND – with this option we can expand the capacitiy of the virtual drive.

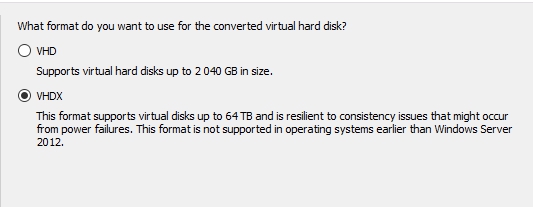

On Convert Virtual Hard Disk choose VHDX

OBS!!! The only reason you would choose a VHD is when you are going to implement an OS on the virtual machine that doesn’t support running on a VHDX disk (Windows Server 2008 R2 or earlier).

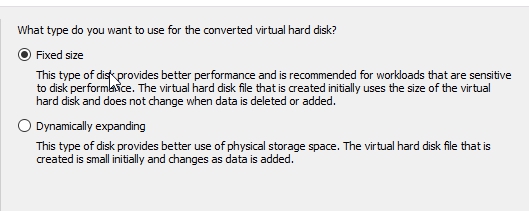

On this page I will choose Fixed Size


Click on browse and choose the new name and location.(In my case converteddrive.vhdx)..Next and Finish

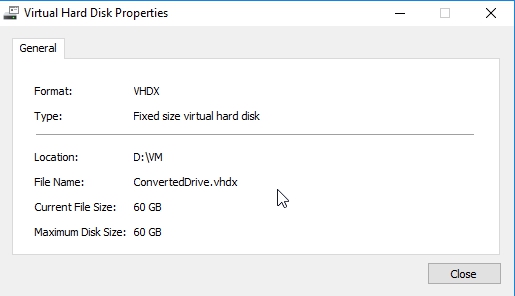

Run Inspect one more time to see results.
